Make the Glass Dagger from Skyrim



This is a tutorial on how to make the Glass Dagger from Skyrim. It is another in my series of skyrim projects. This one is more challenging because we make a mold and actually cast the blade in epoxy resin (easy cast).

. You can download the template right here.

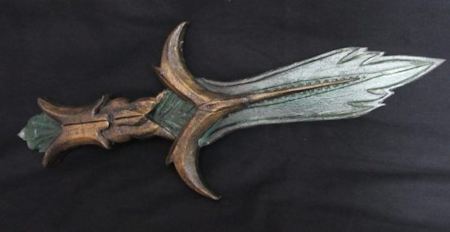

The Glass Dagger from Skyrim



Materials Needed for this Project:

Overview of the Process

  • Step 1: We make a dagger out of balsa wood
  • Step 2: We cast that balsa wood dagger in rubber to make a mold
  • Step 3: We pour some kind of resin or epoxy into that mold, this creates a plastic dagger
  • Step 4: We make the handle and guard out of foam



Part 1 : Make the Balsa wood Dagger

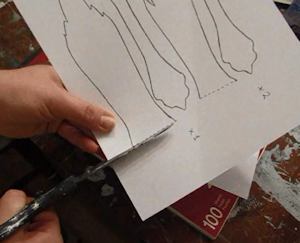

Cut out the template parts

Print up the template and cut out the parts

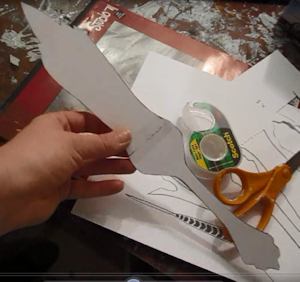

Tape template parts together

Tape together Parts A1 and A2. Also tape together parts B1 and B2.



Trace onto balsa wood

Trace the blade sections onto balsa wood. Of the A template you trace one out of balsa wood. Of the B template you trace two of them.

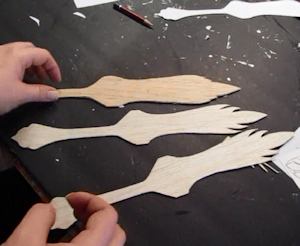

The three balsa wood pieces

You end up with three pieces like this. That top piece is unique. Those two bottom pieces are identical.

Glue these three pieces together as a stack one right on top of the other with the A piece in the middle of the stack.

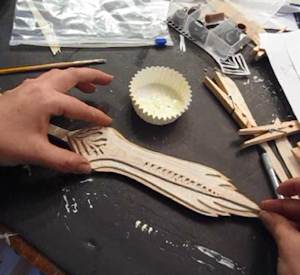

Glue center rib

Next use the template to make two of the center rib sections out of balsa wood. It takes a little time, especially for all those center hole cut out sections. If you break it while working on it that is ok. You can glue the center rib onto the dagger in pieces.

Do two of these. One on each side of the dagger.

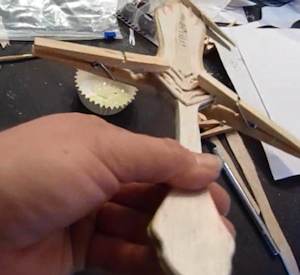

Clamp together

Clothespins work really well for clamping the pieces together while the glue dries.

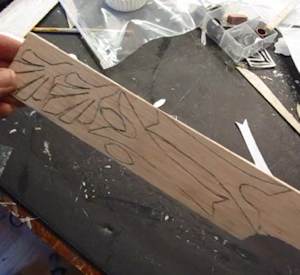

The pieces traced onto wood

Now there are six remaining parts to glue to the dagger and our model will be done. This is all handle stuff and there are actually three parts. They go on one side of the handle and an identical three parts go on the other side of the handle.

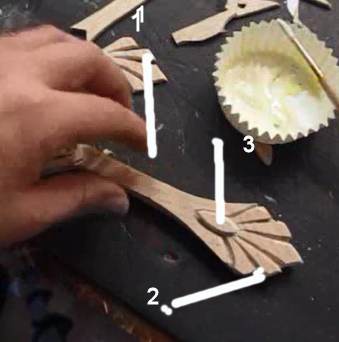

How to arrange the wooden handle parts

Here are how the three handle parts go on the handle. 1 is the handle. 2 is the pommel and 3 is the jewel. You do the same thing with three parts on the other side.

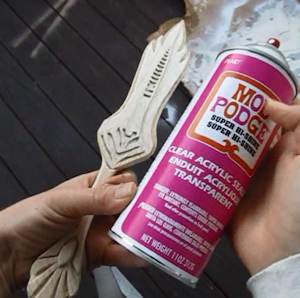

Seal it

Now, if possible, seal it. This will help a lot with the next stage of using it to make a rubber mold.



Mod podge sealant

Mod Podge Clear Acrylic Sealer

The perfect final coat! Protect decoupage and craft projects with a dust-and-fingerprint resistant finish. All Mod Podge sealers can be used over waterbase and oil base paint, glaze, lacquer and varnish. Clear, waterproof and non-yellowing



NextLet's continue making this dagger



The video tutorial is here:
