Make the Phantom Blade Mini Crossbow from Assassin's Creed



This is a fun foamboard project that really works. And you don't need a whole lot of materials for this. I give you the template that has all the parts. You print up the template, and use it to easily make your parts. Then glue it together.

I also have a video tutorial on this project at the bottom of this page.

Thanks for coming over from youtube! Give me a day to finish this tutorial but I do have the template ready right here:

The template is here





The completed Phantom Blade

The Phantom Blade



Materials Needed:

  • The Template
  • 1 sheet of foamboard
  • Glue stick
  • Sharp hobby knife
  • Two rubber bands
  • 3 Barbecue skewers or 3 thin paint brushes
  • 20 inches of string
  • Hot glue gun
  • A straw as a projectile
  • A piece of vinyl or cloth for the wrist gauntlet
  • Some velcro or tape so you can wrap the gauntlet around your wrist and attach it to the phantom blade

Note from Will: The Template and the tutorial are both absolutely free! But would you consider a donation of $1 to support my work? Paypal makes it very easy and safe. Click here to donate $1 - Every little bit helps Will to keep making great tutorials and templates. Thanks!



Hidden Blade

I also have a tutorial on how to make an Assassin's Creed Hidden Blade that works!

This is a fun project that just uses cardboard or foam board with a rubber band. It really works quite nicely. Make an Assassin's Creed Hidden Blade



Let's Get Started!

Print up the template

Print up the template. There are two pages of parts that we will need.



Glue stick the backs of the template pages

Apply an even coat of glue stick to the backs of these two pages.



Stick them neatly down to your foam board.



Cut out the pieces

Cut out the pieces. Take your time and do a nice job. It will make a difference in the assembly.





Will

Will's Tip on Cutting Foam board: Don't try to cut all the way through it in one swipe. Use a really sharp blade and make three passes. the first pass just cuts the top layer of paper. Second pass cuts the foam and the third pass cuts through the bottom layer of foam.

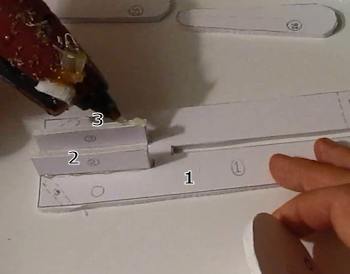

Assembly 1

Let's start the assembly. Lay piece 1 down and glue pieces 2, and 3 to it as shown.

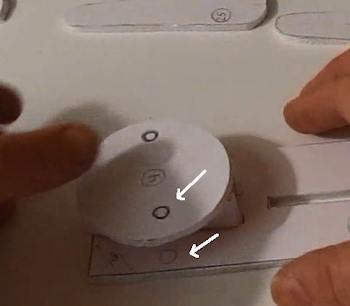

Assembly 2

Then glue piece 4 right on top of 2 and 3 just like this. Notice how the holes line up. The arrows show the holes lined up.

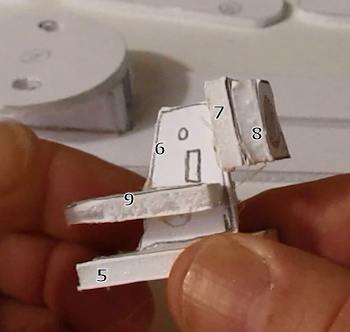

Assemblly 3

Ok, now make the carriage assembly. This is what rides in the slot and propels the projectile. It is 5,6,7,8 and 9.

Before you add piece 9 you should test this thing for fit. To see how it will ride in the slot.

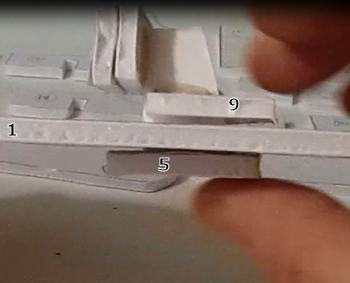

Test the slide

That carriage assembly should slide easily and smoothly in the slot of part 1. So test it before you glue it. Then test it after you glue it. Quickly wipe away any excess hot glue. Globs of glue can cause it to stick and not slide smoothly.



Ok, let's continue with this assembly



The Video Tutorial:
