Make an Orcish Dagger from Skyrim

The Orcish Dagger is a very primitive looking dagger from Skyrim. And it is easy to make. I use some slightly different techniques for this project. But you have lots of options. If you don't have foam you can always do it with foamboard or cardboard.

The template is right here

Will has a youtube channel with over 1000 videos on projects you can make. Check it out right here

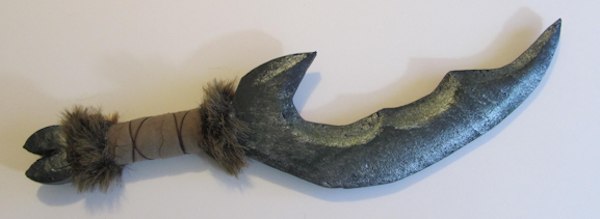

The Orcish Dagger



Earn a Certificate of Contribution!

Certificate

If you make this project email me a picture! I will email you a certificate of contribution from stormthecastle.com You can print it up and hang it on the wall.



Things you will need:

About the foam:



Take a trip to your local home improvement store and pick up a sheet of home insulation foam. The picture shows the sheet I got. It is 2 feet wide, 8 feet long and 1 inch thick. that 1 inch thick is important to remember because they often sell sheets that are 2 inches thick. You can use it but that extra thickness is not necessary.

It's very light and easy to work with. Have an employee of the store cut it in half for you so you can get it in the car.

Note that different companies make it in different colors. But they are all the same. It can be either pink, blue or green.

Lowes has it, called Green Guard. Here is a picture. It is one inch thick and two feet square. Here is a screen shot I took from their online store.



At home depot they sell the large sheets but they also have smaller ones that are one inch thick and two feet square. They call them project boards:

They sell the foam on Amazon but it is more expensive. So, use this option if you don't have easy access to a home improvement store. Watch for the sizes. YOu want the one inch thick stuff, and consider what size board you want. Mostly they sell it in one foot squares. Owens Corning foams on Amazon

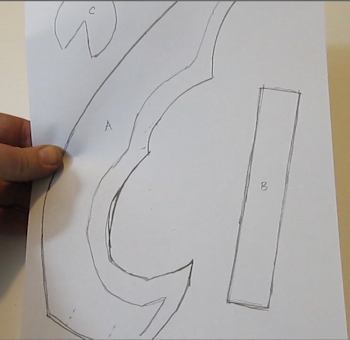

Print the template

Print up the template.

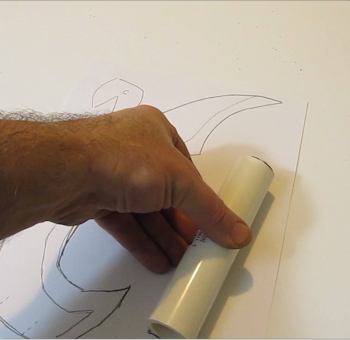

Cut PVC pipe

The piece labeled "B" is a guide to show you how long to cut your pvc pipe, dowel or broomstick. It is about 1 1/4 inches wide and 6 inches long.

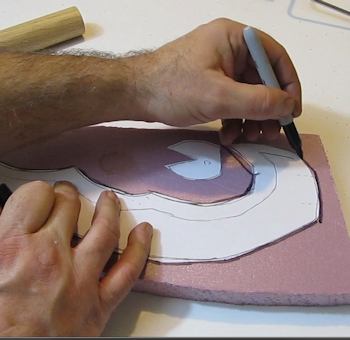

Trace template onto foam

Cut out Parts A and C from the template. Lay them on your one inch piece of foam and trace them.

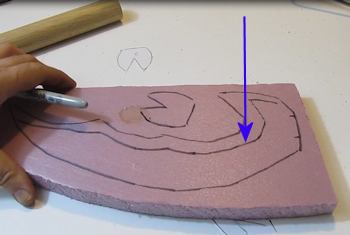

Draw the internal blade line

Be sure to draw the internal blade edge line. This is useful for when you carve out the shape of the knife.

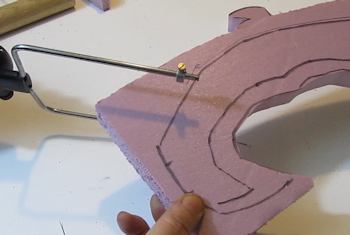

Cut out the part

Now cut out the parts. I am using a hot wire foam cutter but you can use just about anything. Foam cuts pretty easily. An xacto knife or a hacksaw blade also work well.

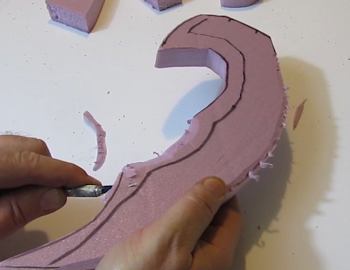

Carve the shape

Okay! Let's start carving.

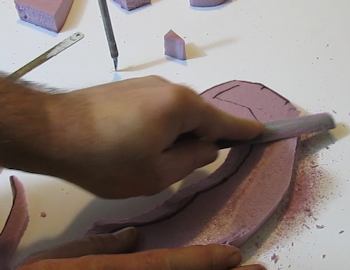

Rasp into shape

Some of the tools you can use to carve out the shape of the dagger is knifes, sandpaper, a hacksaw blade and a rasp. The rasp works really well.

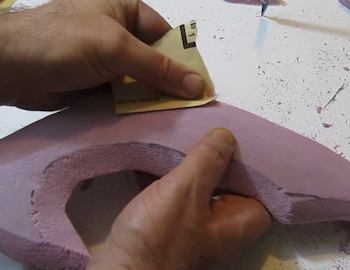

Sand it

Finish off the shape with sand paper. I used 220 grit. But don't make the knife really smooth. You want it to be very raw, rough and orc-like.

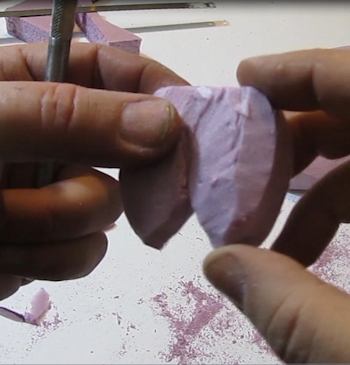

Carve the pommel

And follow this same shaping and sanding process with the pommel.

NextOkay! Let's put this dagger together (continue)
