How to Make Dragonscale Chainmail

This is a tutorial on how to make a style of chainmail called Dragonscale. It is a weave that is composed of two different sized rings. It is dense and it looks great. I show you how to make it step by step and I also have a video showing how to make it . The video is at the bottom of the page.

And, if you never made chainmail before you might want to start with my easier tutorial. In that tutorial you make the standard european 4 in 1 chain. It is quick to learn and looks great too. Right here: Make beginners chainmail

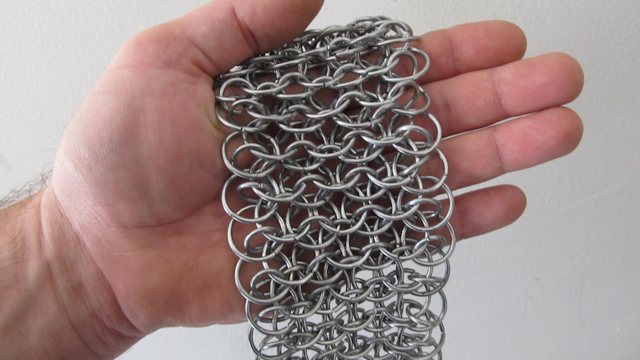

Dragonscale Chainmail

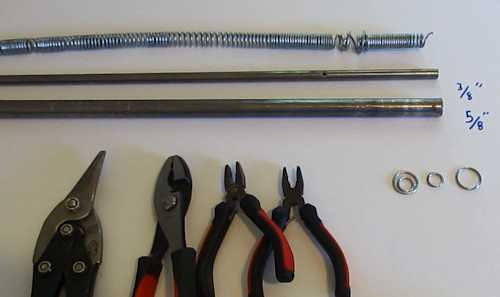

Materials needed for this project:

Tools and materials

TIPS BEFORE GETTING STARTED

  • Safety Note about working with galvanized wire! Please be safe. I got an email from a web visitor who worked very closely with it and started experiencing breathing problems. So, if you are going to work very closely with it you might want to wear a breathing mask! And, galvanized wire gives off a toxic fume when heated so don't heat it!
  • If you are using steel wire then this work is tough on the hands so take your time and take breaks. Don't over do it. Put it aside for a while and get back to it later. Get your friends to help too! That will make things easier and quicker.

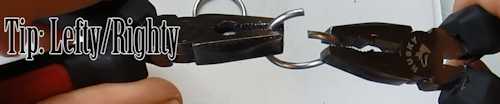

  • When opening the large rings so you can weave them into the mail you should bend them a specific way, depending on whether you are left or right handed. It will make things so much easier. This picture shows:

Lefty righty

Grab the ring like this with a pair of pliers. The camera view is looking right through your eyes. And if you are right handed bend that right side of the ring toward you. As shown in the picture. If you are left handed bend the left open end of the ring toward you. This will make things a lot easier.

OKAY! LET'S GET STARTED!

Start making rings

Ok, start making rings. Make an equal amount of the 3/8 rings and the 5/8 rings.

I don't show you how to spin them out here. But I do have a page right here that shows you how to do that. I also show you how to make a little jig for it all to go faster.

Will

BLAH BLAH BLAH!
Enough with all the introductory stuff. Let's make some chain mail!!!!(Click to continue)
