The Anvil

Here is a picture of an anvil with explanations of the various parts. There are a surprising number of unique characteristics about anvils. At first glance you might see that it is a flat surface that is hammered on. And while this is true there are actually quite a few other characteristics of the anvil that are very useful to the blacksmith. I will go over these features.



The markings and weight of the anvil

Typically an anvil will have markings on it that will display the company that made it and the weight of the anvil. As far as the weight goes there are several different ways that this is done. American made anvils will often be marked in pounds, european anvils often marked in kilograms and older anvils, particularly from great britain could have a peculiar marking system called "Hundred Weight" . It will be shown as three digits with a dot between each digit. Something like this:

2 - 2 - 6

The HundredWeight Anvil marking: the first digit is multiplied by 112 pounds, the second digit is multiplied by 28 and the last digit is the remaining pounds. And all three of these results are added together. So an anvil marked with 2-2-6 would actually weigh 286 pounds. Darn big anvil!

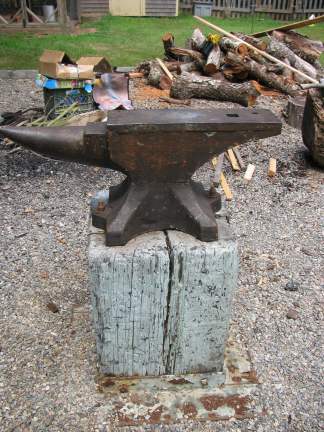

An anvil
(A typical anvil)



The Parts of an Anvil



  • Horn - Used for forming curves in metal
  • Cutting table - used for cutting metal. You don't want to cut metal on the face of the anvil. It could cause damage. The cutting table usually is of a softer metal than the face of the anvil.
  • Face - Where you do most of your hammering
  • Pritchel hole a hole used to punch holes through metal
  • Hardy hole - Tools are placed in this so you can work use the tool. A good example would be a hot cut tool. it is placed in the hardy hole and it has a cutting edge on the top. So you place the metal to be cut on top of this tool then strike it. I will show more about this.

A Video showing you the parts and uses of the Anvil



Return to lesson 1 of the Blacksmithing Course
