How To Build A Trebuchet

Assemble the string and pouch

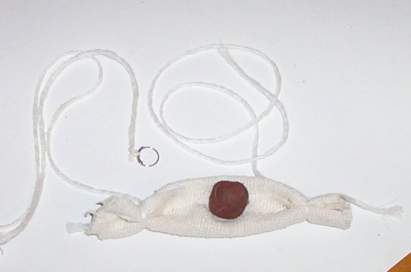

Cut two pieces of string at least 18 inches. You will trim this down later. Fold your cloth in half then tie each end with a string so it forms a nice little pouch. Take your time with this. It will come out fine.At the end of one of the strings attach a loop. More on this in next step. Shown here is a soft little clay ball for the projectile. Grapes work great and are safer.

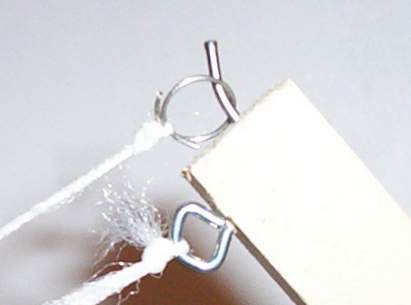

I made my loop out of the metal from a spiral bound notebook, its simply one revolution, You can use wire or anything else that is thin yet strong.
Now attach your pouch to the arm of the trebuchet. It should be about 12 inches from the hoop shown here. The top loop will slide right off as the arm goes forward. This will allow the pouch to open and release the projectile.
	.

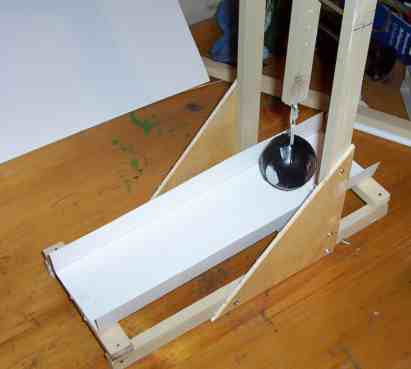

This string and pouch will rest right under the trebuchet so you need a little runway for it to ride on. I made a runway out of posterboard. Just fold up each side about one inch and then glue the runway right into the trebuchet.
Ok We are done! Now we can fire it off! Continue
