How To Build A Trebuchet



Let's cut all the wood for our Trebuchet first.

Using your long pieces of wood cut these lengths:

  • 1 - 16 inch piece; This is the swing arm
  • 2 12 inch pieces; These are the long base pieces
  • 2 10 inch pieces; These are the uprights
  • 3 5 inch pieces these are the cross pieces that complete the base




Now cut the triangle support pieces. This is easily done by cutting a piece of wood to a square about 5-6 inches on each side. Then draw a line from one corner to the other and cut across this line. It gives you two identical triangles. Shown in the picture at right is the square with the line drawn on it before cutting.
wood for the trebuchet base support

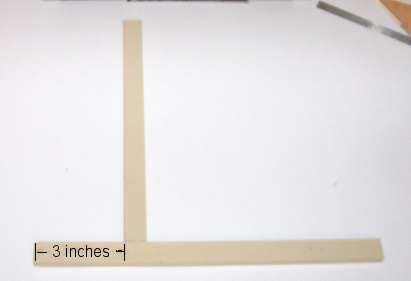

Build these two parts of the frame first. You should make these parts first because it will be much easier to assemble later on. Lay out one 12 inch piece of wood horizontally. Mark a line on it 3 inches from the left end. Place the ten inch piece of wood vertically at this mark.

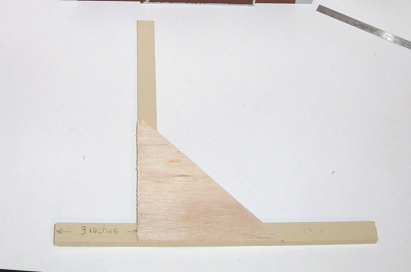

Now carefully place the triangular piece on this structure and glue it in place. Put nails or screws in it to make it stronger.

Do this again for the other side of the trebuchet but.... You have to do the other side of the Trebuchet but it is a mirror image. Mark off 3 inches from the other side (the right end) of the 12 inch wood and this is where you put the upright ten inch piece and the triangle wood.

Lets continue on to the next part Trebuchet build page 2
