Part 2: Assembling the Parts

In this part of the tutorial we assemble the beehives.

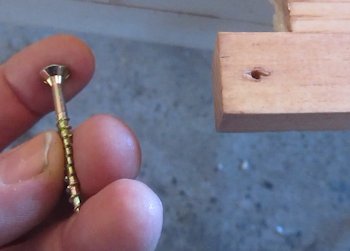

You can use nails or screws to assemble the hive parts together. We are using screws.

Screw for the hive

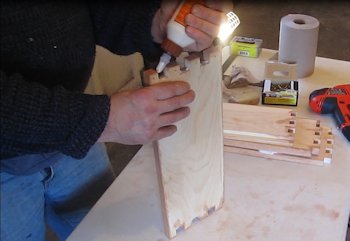

Apply a wood glue to the joints.

Apply wood glue

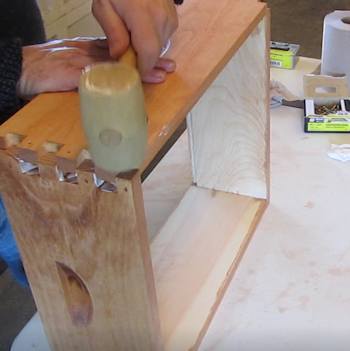

And assemble four parts to make a box. The parts should be a snug fit so a mallet will help a lot in the assembly. (Notice: The glue will squeeze out and run on the wood. Don't forget to wipe all that excess glue off before it sets. You can do it a bit later after all the screws or nails have been inserted).

Use a mallet to assemble

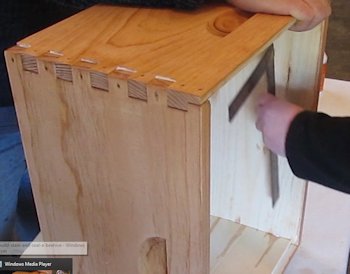

Keeping everything square is very important. If the boxes aren't perfect rectangles once assembled they will not line up well when you put them together so use a carpenters square to check everything, get things nice and square right angles.

Use a carpenter's square to check assembly

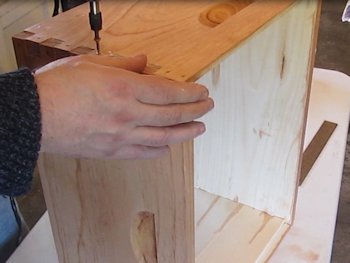

Once the four parts are glued, assembled and squared put a few screws or nails in it to hold it. Once on each corner is good.

Put a few screws to hold it

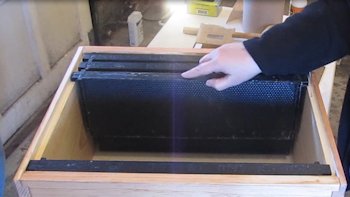

And do a quick test by adding some frames. Just to check that everything is good.

Test the assembly with frames

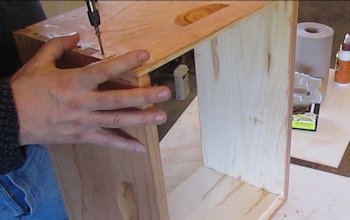

Once you are satisfied that everything is good go ahead and put in all the screws or nails to finish the assembly of each box.

Finish the build by putting all the screws

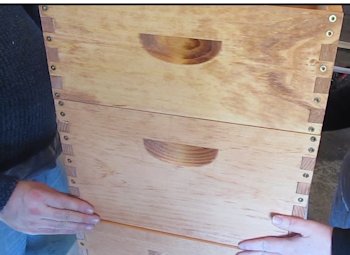

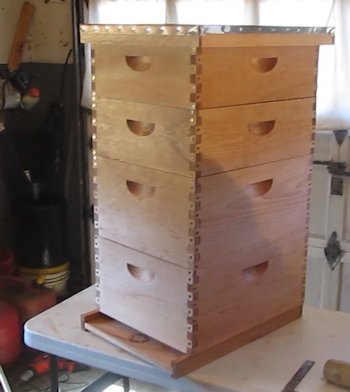

Once you have all the boxes assembled stack them up the see how they all look.

Make a beehive stack

It looks great! We make two of these hives.

The completed beehive



NextOkay, We are going to do some further work on our two hives including another coat of stain and fiberglass resin as a sealant. Continue
