How to Make a PVC Catapult

PVC is an inexpensive plastic pipe that plumbers use. It is readily available, easy to work with, and it comes with all kinds of fittings that make it excellent for making things. Fittings that you just buy right off the shelf at the home improvement store.

In this tutorial, with a video, I show you exactly how to make a small table top catapult out of PVC. I take you through the process and give you the parts list.

This project also comes with a video. It is at the bottom of the page.

Will has a youtube channel with over 700 videos on projects you can make. Check it out right here







The PVC Catapult banner



Earn a Certificate of Contribution!

If you make this project email me a picture! I will email you a certificate of contribution from stormthecastle.com You can print it up and hang it on the wall.







Materials and Tools:

  • 85 inches of 1/2 inch PVC - Don't go out and buy 85 inches unless you can get it in one full length! Because you have to cut it up into sizes I will show you below. Buy more for margin of error.
  • Five of 1/2 inch T's.
  • Six of 1/2 inch 90 degree elbows
  • One of 1/2 inch male coupler
  • One of 1 inch to 1/2 inch elbow reducer
  • Optional (PVC Cement)

Would you consider a donation of $1 to support my work? Paypal makes it very easy and safe. Click here to donate $1 - Every little bit helps Will to keep making great tutorials and projects. Thanks!



Note about the pipes and the fittings. Every hardware store will have lots of these right on the shelves. These parts are standard parts. And it is all very inexpensive. For example the elbows are about 38 cents each.

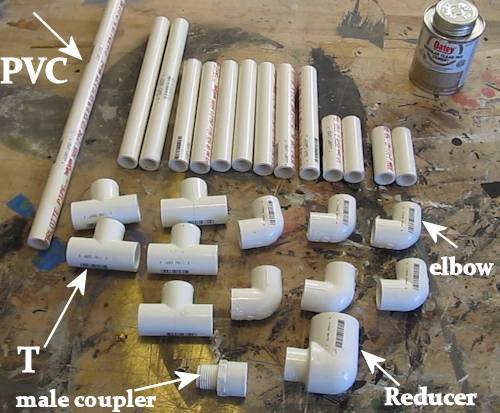

The PVC Parts



Here are the length's to cut the PVC to:

  • 1 - Fourteen Inches long
  • 2 - Nine Inches long
  • 7 - Six Inches long
  • 2 - Three inches long
  • 2 - 2 1/2 inches long



The Threaded parts

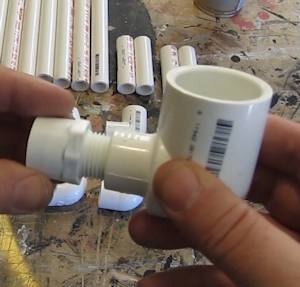

Note that when buying these pvc parts only two parts have threads. They are the Male Coupler and the Reducer. Be sure to inspect the elbows and the T's to make sure they are no threads in them.











Let's put it together.

It is very easy to put together. But don't glue it. At least not the first time you put it together. Do it the first time without any glue. This way you can make mistakes and get a feel for how the pieces to go together.

First put together the Swing Arm. Here is how to do it:

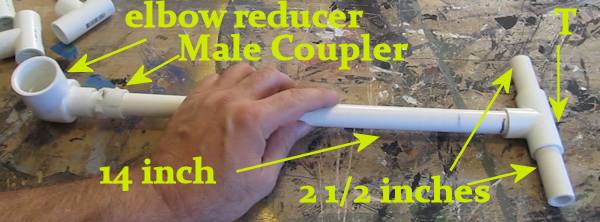

Make the Swing Arm



Now let's start building the base. Here are the parts and how to assemble them.

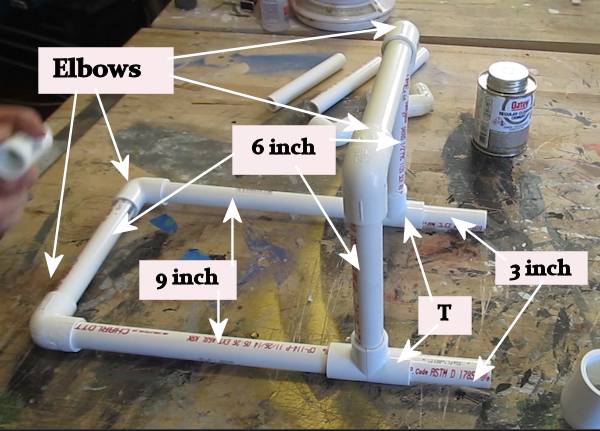

Assemble the Base of the catapult

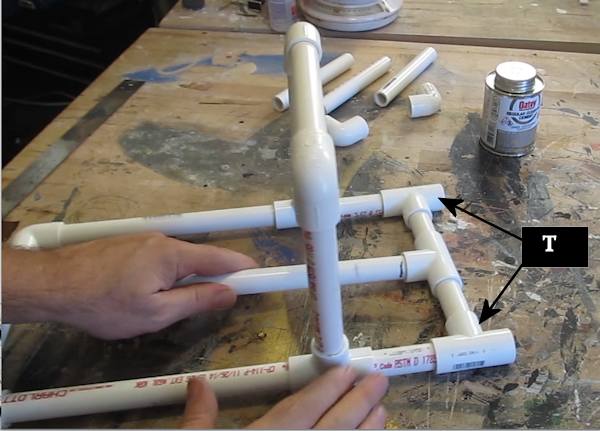

Now attach the swing arm to the base with a pair of T's.

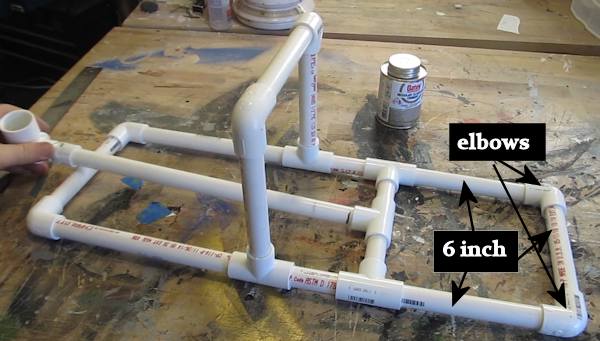

Finish the assembly by adding the final pieces to the base.

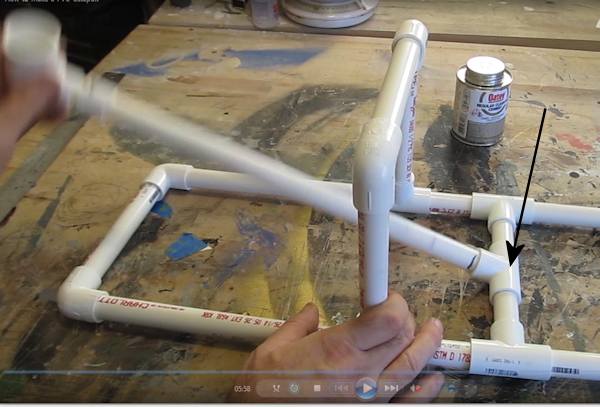

Now work the swing arm up and down so the pivot is nice and loose. You want it to easily move. You can always sand down the parts to loosen them.

Finish assembly of the base

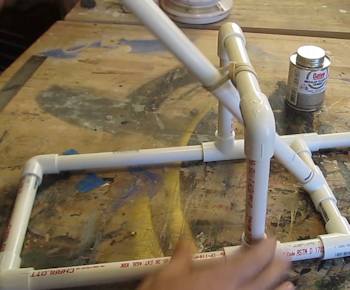

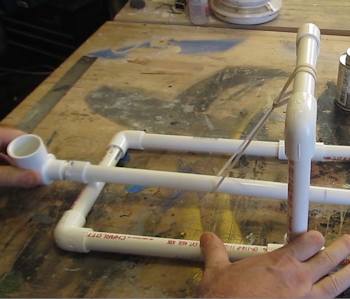

Finish the catapult by adding a rubber band or multiple rubber bands.

Attach a rubber band

And that's it. Your PVC catapult is ready for storming the castle.

Fire the catapult

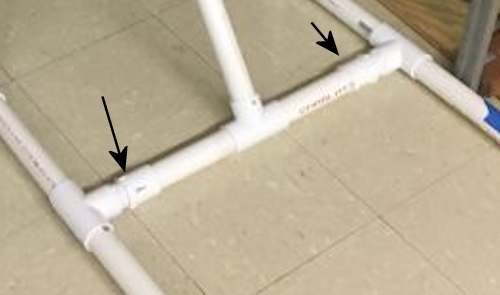

Here is a tip from a web visitor (Vince). If your catapult throw arm is a bit sticky you can use threaded reducers. This way instead of friction the throw arm rotates on the threads. Here is a picture. Note that if you add threaded reducers you should put small foot pads under the catapult frame so the pipe rotates freely without hitting the ground.









You can watch the video tutorial here:
