How to Make a Ship in a Bottle

This is a small ship in a bottle project. I purchased this as a kit from a hobby store. I show you the basic techniques of how something like this is made. The big thing, and the uniqueness about this kind of project, is how to get the ship inside the bottle. I also have a video that goes along with this tutorial.



The illusion is that the ship is too big to fit through the mouth of the bottle so what you do is build it outside the bottle with the sails and masts collapsed and then once the ship is placed inside the bottle you raise them all.

This building a ship inside a bottle is a very old and very traditional art that was started by sailors in the late 18th and early 19th century. They would build these on long voyages as gifts for loved ones back home. And one of the amazing things about this kind of project is that you can actually learn a lot about sailing ships by building one. You learn what all the various types of masts are, the rigging and the parts of a sailing ship. Kind of neat if you ask me.

Will

Tip if you are planning on buying a kit like this. There are lots of ships in bottles that you can buy but they are not kits - they are already assembled so if you want to buy a kit make sure it is actually a kit and not an already completed product!



A ship in a bottle

Also: A web visitor submitted a terrific little paper ship in a bottle project. If you don't have many resources you can print up and make this little ship to put in your bottle! Take a look here: Paper Ship in a bottle



Here is a picture of the completed project that I make in this overview tutorial

The completed ship





The collapsed masts of the ship

This picture shows the major concept of building the ship with all the masts collapsed (they are hinged by small pieces of wire). This way you can get it into the bottle.

The masts are all hinged by small circles of wire.



Pull string

Once you have it glued into the bottle you pull the string or strings and this raises the masts to their final upright position.

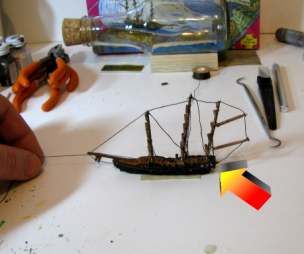

end of the string is tied

Here is an important concept to know when it comes to rigging your ship. You wrap each mast with the thread and put a dab of glue to hold it in place on each mast. But before you glue each mast you test it in up right position and it the folded down position. Pulling the string brings it taut into the upright. The last tie down (shown by arrow) is kind of like the anchor that holds it all into position. You need this last one secured to the boat.



The Rigging

It is a bit difficult to see in this picture but you also have to stabilize the masts so they don't fall over to the side of the ship. And you do this by running a new thread on each mast. It starts on the side runs up to the top of the mast then runs back down to the other side of the ship. Test these as you place them so they are ok both in vertical position and folded position.

Trick to these is that you anchor the string to the ship slightly behind the mast. This way the mast can fold down.

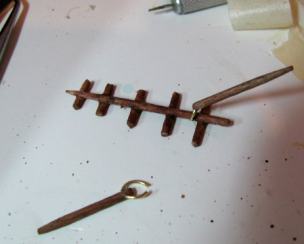

the hinged mast

This hinging of the masts is done with little pieces of wire that you bend into circles. It can be difficult to drill the holes necessary for this because they are toothpicks! but a #60 drill works well.

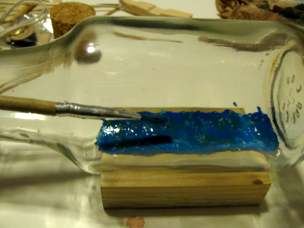

paint the bottom of the bottle

Paint the bottom of the bottle sea colored. Use mostly blue and accentuate it with small amounts of white and green.








HERE IS ANOTHER PROJECT. THIS ONE NEEDS NO KIT.

Ship in a Bottle Make a Ship in a Bottle

We make a scene from the Odyssey. It is the Sirens and Odysseus tied to the mast of his ship. Fun project. I teach you the basics of making a ship in a bottle or how do you get that ship in there! Make a ship in a bottle You don't need a kit for this project. I show you how to do it all with common materials like bits of wood and clay!



Want to see some more ships in bottles? I visitied a marine museum and they had a whole bunch of them. Ships in Bottles

These are at a marine museum in New England.
