It comes with instructions which are pretty easy to understand but here I have pictures and some notes which should make it a breeze to make.

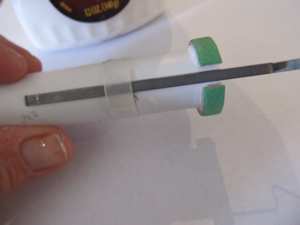

The first part of the process is to make the engine mount. The picture here shows the completed mount.

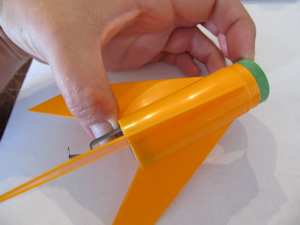

Next you make the fin mount, part of which is installing the engine mount you made in the previous step.

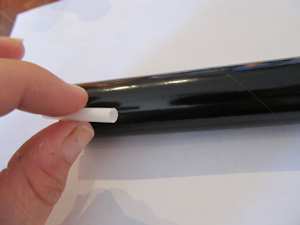

Next you attach the launch lug. This is what rides on the launch pad. It guides the rocket.

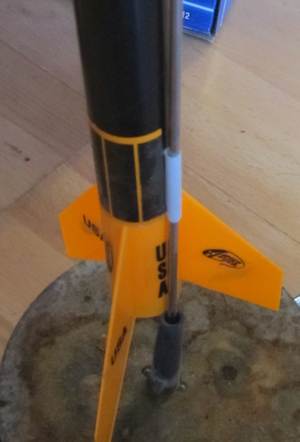

This picture shows you how that launch lug works. Now when the rocket fires it rides right along the steel rod and up.

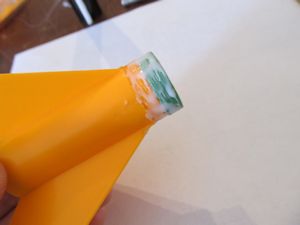

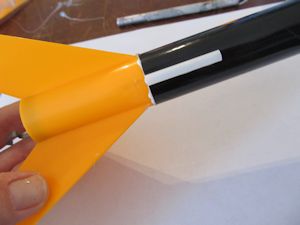

Next we connect the fin section onto the body tube section by applying glue.
The two parts are attached.

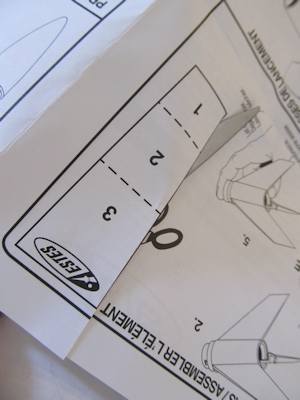

All that remains is to make the parachute assembly. This is a piece of cake, easy to do. You cut out a piece from the instruction sheet that comes with the rocket.

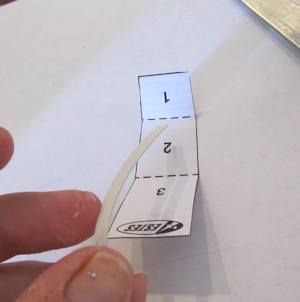

You glue the rubber band into this piece of paper by making consecutive folds, each with some glue.

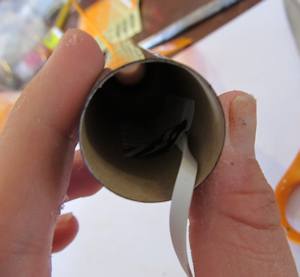

Then you glue this into the tube.

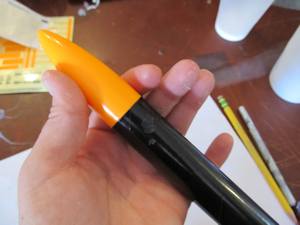

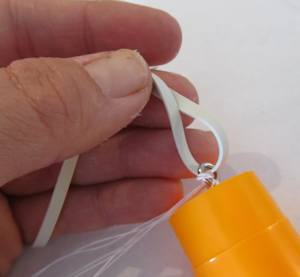

Next we prepare the parachute and attach everything together. This includes putting a screw into the nose cone, attaching the rubber band to it and attaching the parachute to it. It goes a specific way so be sure to carefully read the instruction sheet.

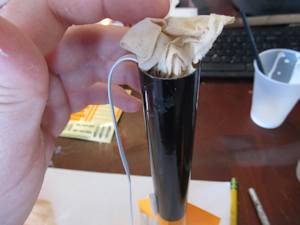

Before you install the parachute and finish the rocket off you should insert some pieces of recovery wadding. It is fire resistant so it protects the rocket from fire when it launches!

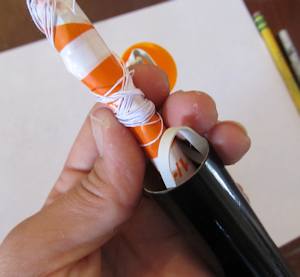

Then we insert the parachute into the rocket. There is a specific way to wrap this parachute so follow the instructions! This is so it will open up nicely and deploy properly.

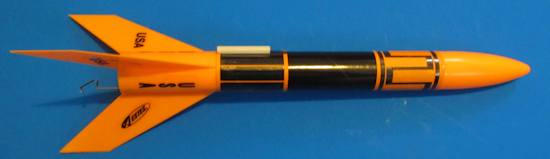

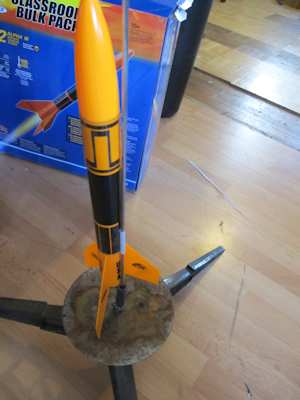

That's It! Your rocket is done. Next you would install an engine and igniter. But, do that on the field just before you are going to actually launch it.

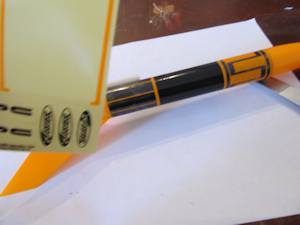

Ahh! But don't forget to apply the decals!
MORE STUFF ABOUT THIS ROCKET
Estes recommends these engines: : 1/2A6-2, A8-3 (First Flight), B4-4, B6-4, B6-6, C6-5, C6-7
If you are having trouble deciding I say go with the mid range:
Estes B4-4 Rocket Engine
Estes 2274 Recovery Wadding
You can also get this rocket as a beginner kit which includes the launching pad.
Join the hundreds of thousands of people who got their start in model rockets with this classic. The Estes Alpha III was the very first rocket in the E2X series. E2X (Easy to Assemble) is a rocket series designed with beginners in mind. With all colored rocket parts and easily applied self-stick decals, you're ready for liftoff in minutes. The black body tube, bright orange nose cone and one piece fin unit build quickly into one flashy rocket. With nothing more needed than glue, you can be on the flying field in no time at all. Using standard Estes engines, the Alpha III soars to heights over 1,100' (335 m). Whether you're a first time rocketeer or a long time flyer, this 12.3" (31.1 cm) Alpha III is a true classic that should be in everyones' collection. What more could you ask for than a high performance, high flying, classic rocket. Assembly takes one hour or less. An Estes controller and launch system are included. Requires 4 - AA 1.5V batteries for the launch controller - sold separately. Recommended for ages 10 and up with adult supervision for those under 12. Estes 1427 Alpha III Flying Model Launch Set without Engines
