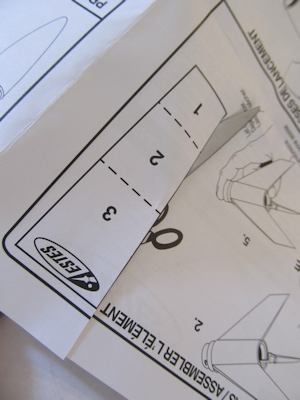

Now lets do the shock cord and recovery assembly. On the instruction sheet you will see a pattern that looks similar to this. Cut that pattern out. It is the glue point for the shock cord.
Part 1 of this tutorial is here

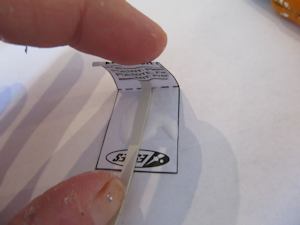

You glue one end of the shock cord at the number 1, fold it over, glue at the 2 then do this again at the 3.

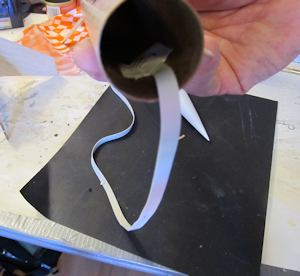

Then glue that into the tube assembly, the center of it is about 1 1/2 inches in.

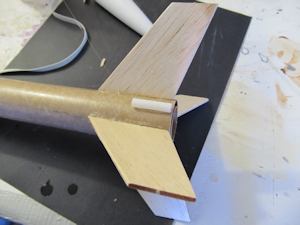

We then have to glue the mounting lug on the side of the rocket. It's the little white thing that looks like a straw.

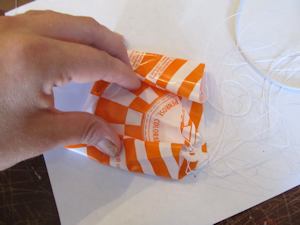

There is a little bit of work when it comes to preparing the parachute, but follow the directions and you will be ok attaching it to the nose cone, rolling it correctly then inserting it in th erocket tube. It is important to follow the directions so that the parachute opens successfully.

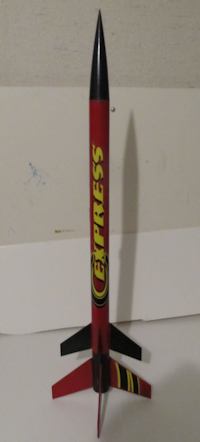

That's just about it. What remains is to paint it and apply the decals.
You can paint the recommended way or you can do it any way you like!
Then it is ready for the launching pad. If you want to learn how to install the engines and igniter I have a tutorial on that right here
